In 2015 Gas Gas has had these replacements manufactured., so the 2015 fan could also be used with earlier models.

They used a 2015+ model fan and radiator BT70000CT-CBN-1 and welded two extra "Nubs" on the bottom and provided an adaptor plate so it could be used on earlier bikes. It still works perfectly well as a 2015+ radiator, just no need for the adpator plate.

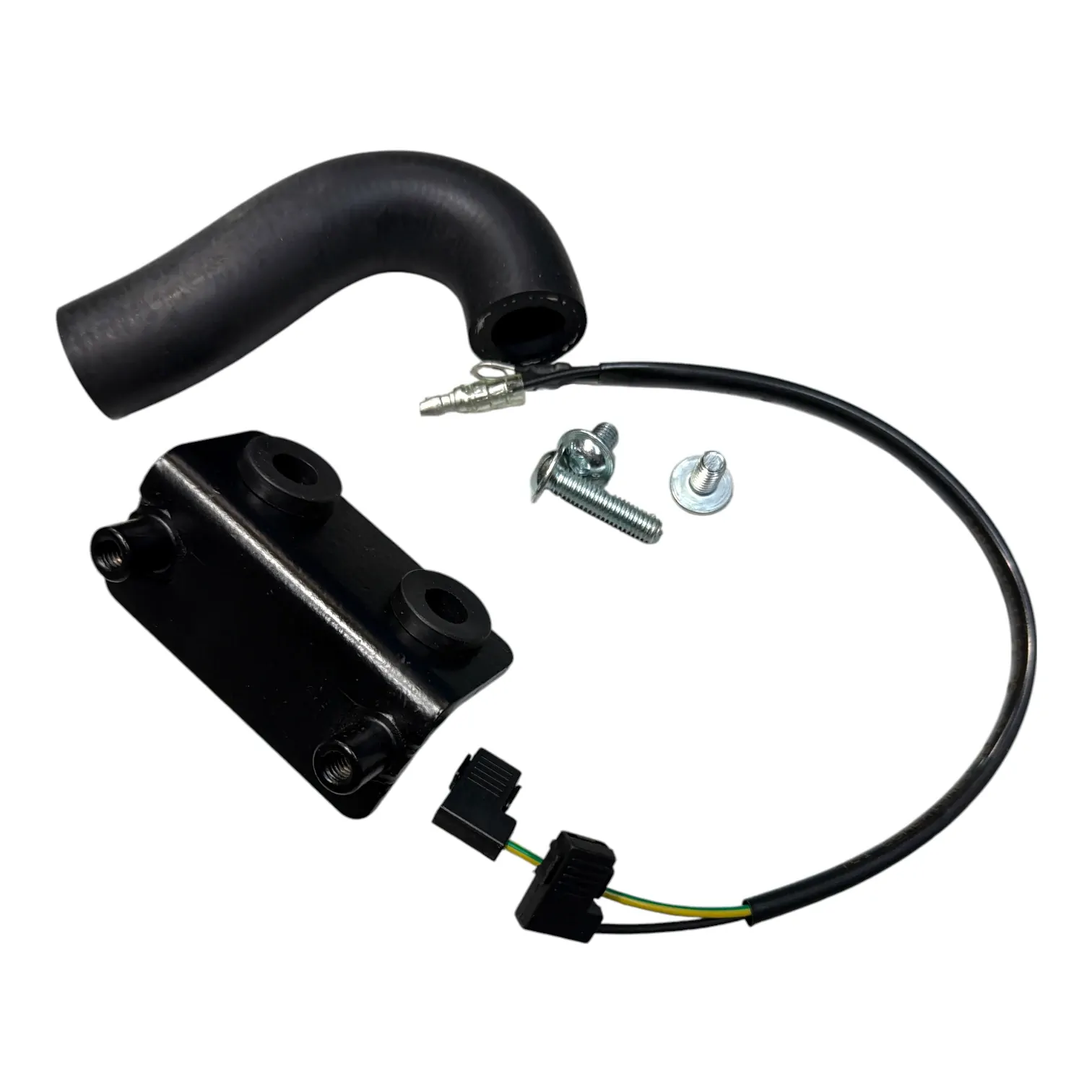

The adaptor kit consists of the adaptor plate with rubber bushes (see images of it fitted to radiator base, so it can be attachd with two supplied screws on ealrier models

It comes with a wiring loom extention if using it on earlier bikes that had the thermo in the top right side of radiator. It extends the length of the wires now the thermo is bottom right.

It also has the radiator hose needed to join the rad to cylinder head.



This radiator can be used to replace the following with a bit of friggin' around.

BT280232000. Radiator with radiator in hose thermostat . (2002 - 2004)

BT280532000T. Radiator with Thermostat in front header tank. (2005 - 2007)

BT70000CT2808. Radiator with Thermostat in side of header tank. (2008 - 2010)

And obviously without using the adaptor kit it can be used as a regular 2015+ tank and fan.

SKU BT70000RCT3009
Brand GASGAS
Shipping Weight 1.0000kg
