• Beta Evo 125/200/250/290/300 2009 - 2016
  • Sherco 250/290 2002 & 2003
  • Sherco 125/200/250/290/300 2004 - Onwards
  • Scorpa 2000-2008 and 2013 - Onwards
  • Gas Gas TXT Pro/TXT RAGA/TXT RACING 2002 to 2011
  • Gas Gas TXT RACING/TXT FACTORY/TXT CONTACT/TXT SCHOOL 2014 - 2018
  • Montesa 4RT/RR/Repsol/4RIDE 2005 - Onwards
  • TRS One/RR/Gold 2016 - Onwards
  • Jotagas
  • Vertigo - 2015 Onwards
  • Ossa 2011 - 2015
MANUFACTURER Braktec / AJP
SHERCO PART CODE R233
BETA PART CODE 007360748 000, 007360748000, 007.36.151.00.00, 007361510000
GASGAS PART CODE BT280222220, fits BT660002811, BT280222010
SCORPA PART CODE 7230, S1A-40602-00-00
MONTESA / HONDA PART 43520-NN3-306 (from 2001 to present)
EM PART CODE TL01J-30212-00-00
OSSA PART CODE 7999010211
BRAKTEC PART # 150.00.396C and 853028MO0



Please note this will not fit the 2012/13 GasGas rear master cylinder units. The ones with the AJP manufactured integrated Reservoir. BT660002811. But it does fit the later model Braktec units with the same part number - yes very confusing! See photo description below.

This fits up to 2011 cylinders (with remote reservoirs) and has a 9.48mm Piston OD. And the Braktec manufactured later model rear Master Cylinders (2014<)

(Note: This kit fits rear master cylinder number BT280222010, and Braktec manufactured BT660002811)

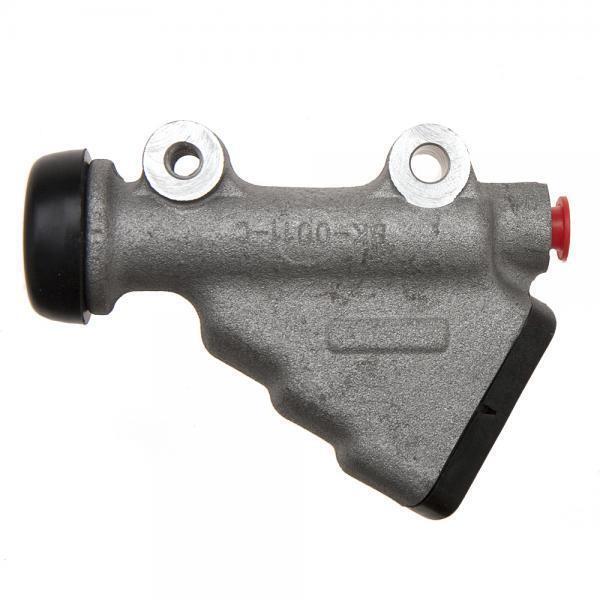

Please see the images,......this kit fits the Braktec manufactured integrated master Cylinder.

The identical looking cylinder that was made by AJP uses the slightly smaller piston BT280222220/2

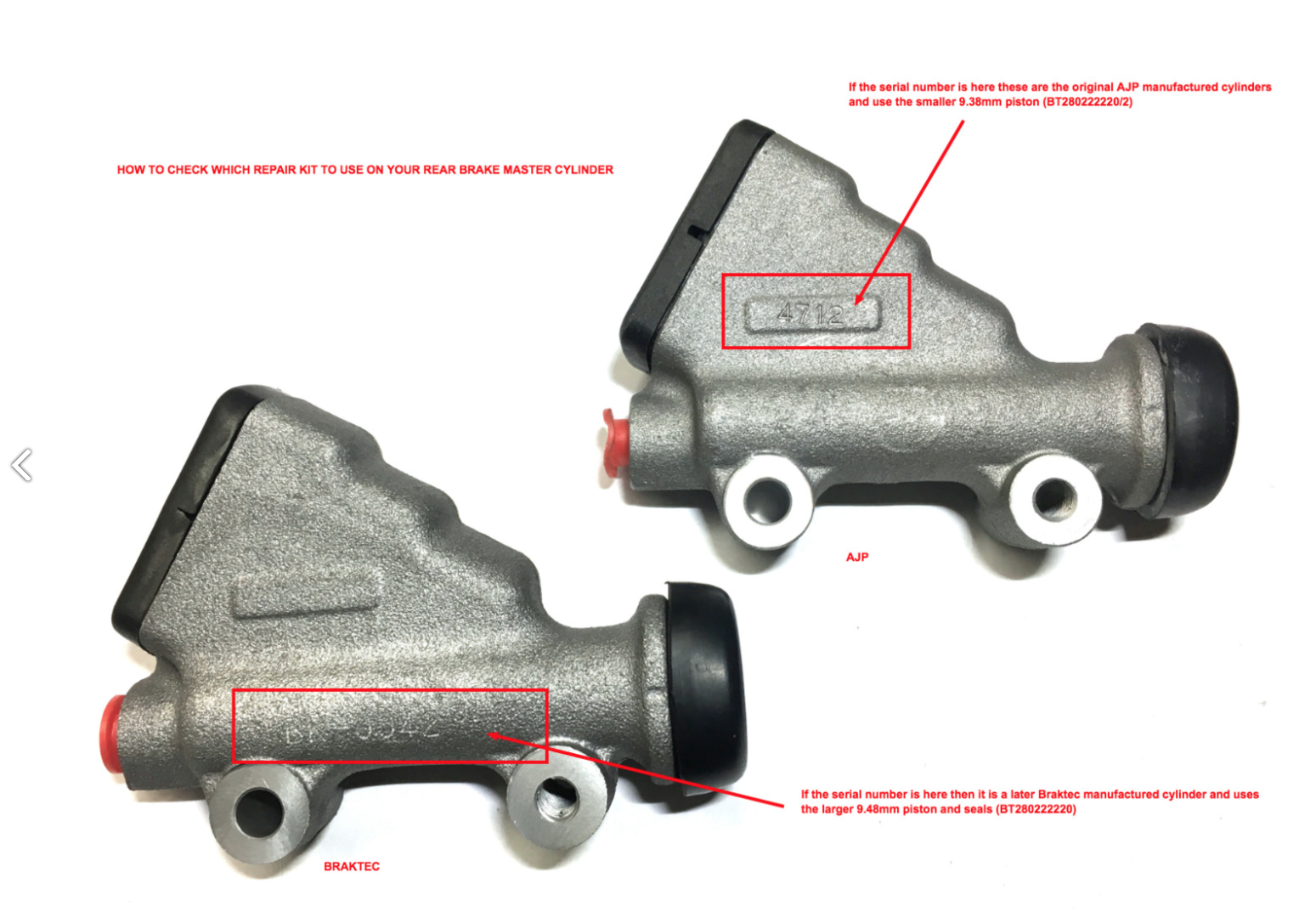

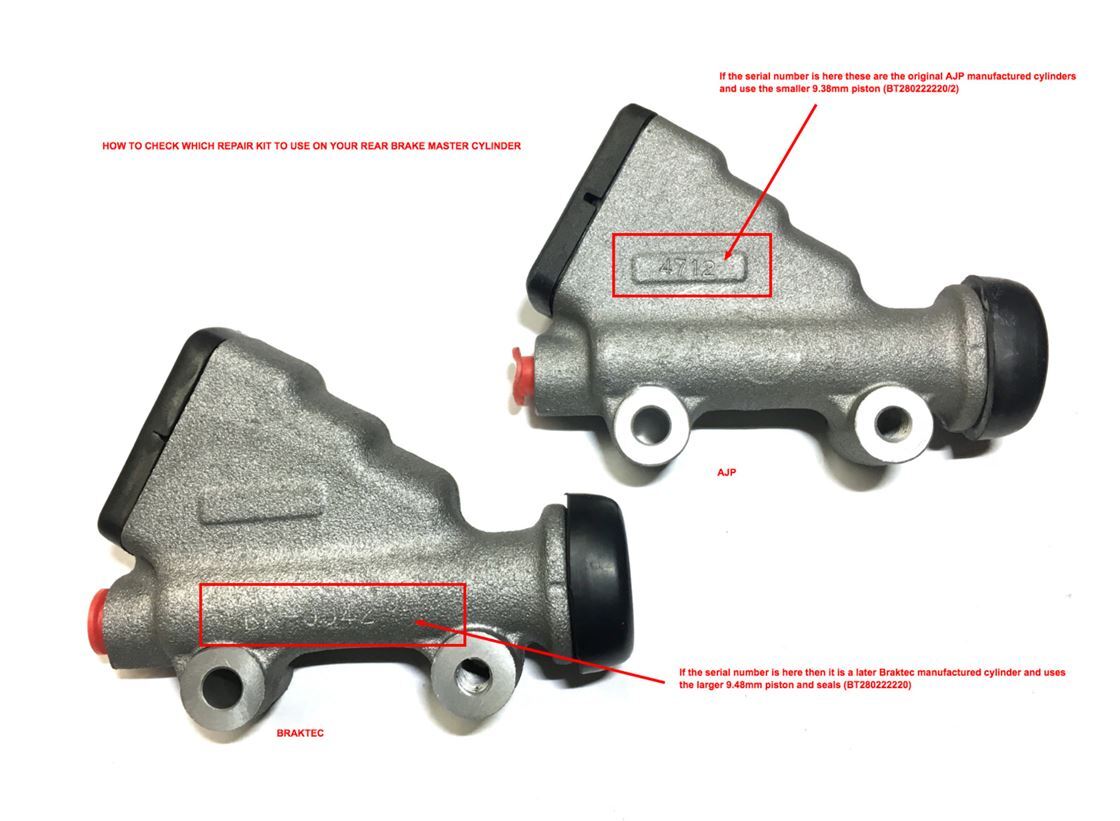

You can check which cylinder is fitted to your bike by checking where the serial number is stamped on the back of the Master Cylinder body.

Please see the photos attached to check 2012 - 2018 Gas Gas Rear brake Master Cylinder Manufacturer.



SKU BT280222220
Brand Braktec
Shipping Weight 0.1000kg
