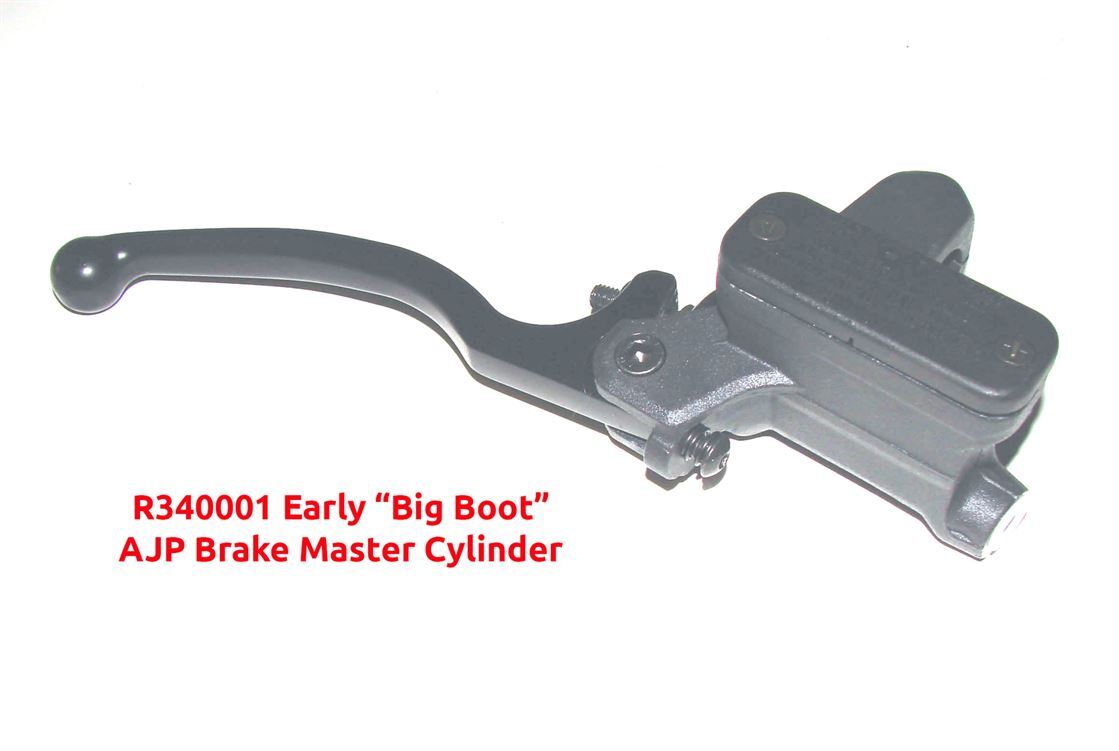

BRAKE M/CYL KIT (AJP early Big Boot type) DOT4

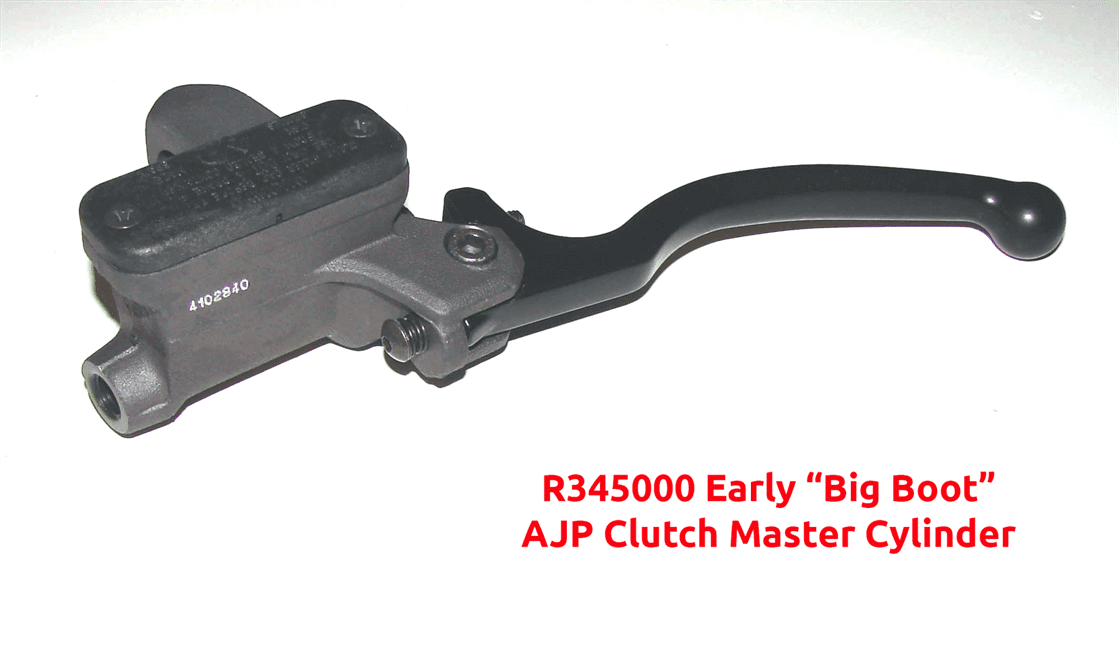

Can also be used clutch side side.
AJP Master Cylinder Seal Kit for the larger clutch / brake master cylinders found on many older Trials bikes.
The only difference between clutch and v=brake kits is the strength of the piston return sppring, so they are interchangeable. Softer spring in clutch version of the kit.
Secure Payment Methods
AJP Master Cylinder Seal Kit for the larger brake master cylinders found on many older Trials bikes. (reference pictures attached)

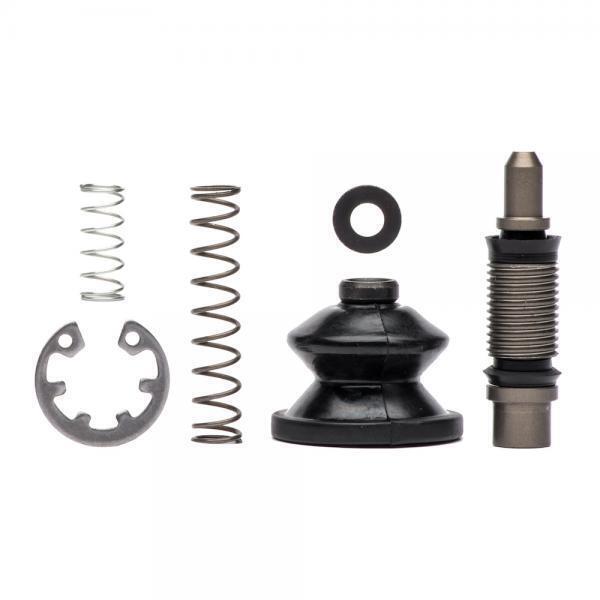

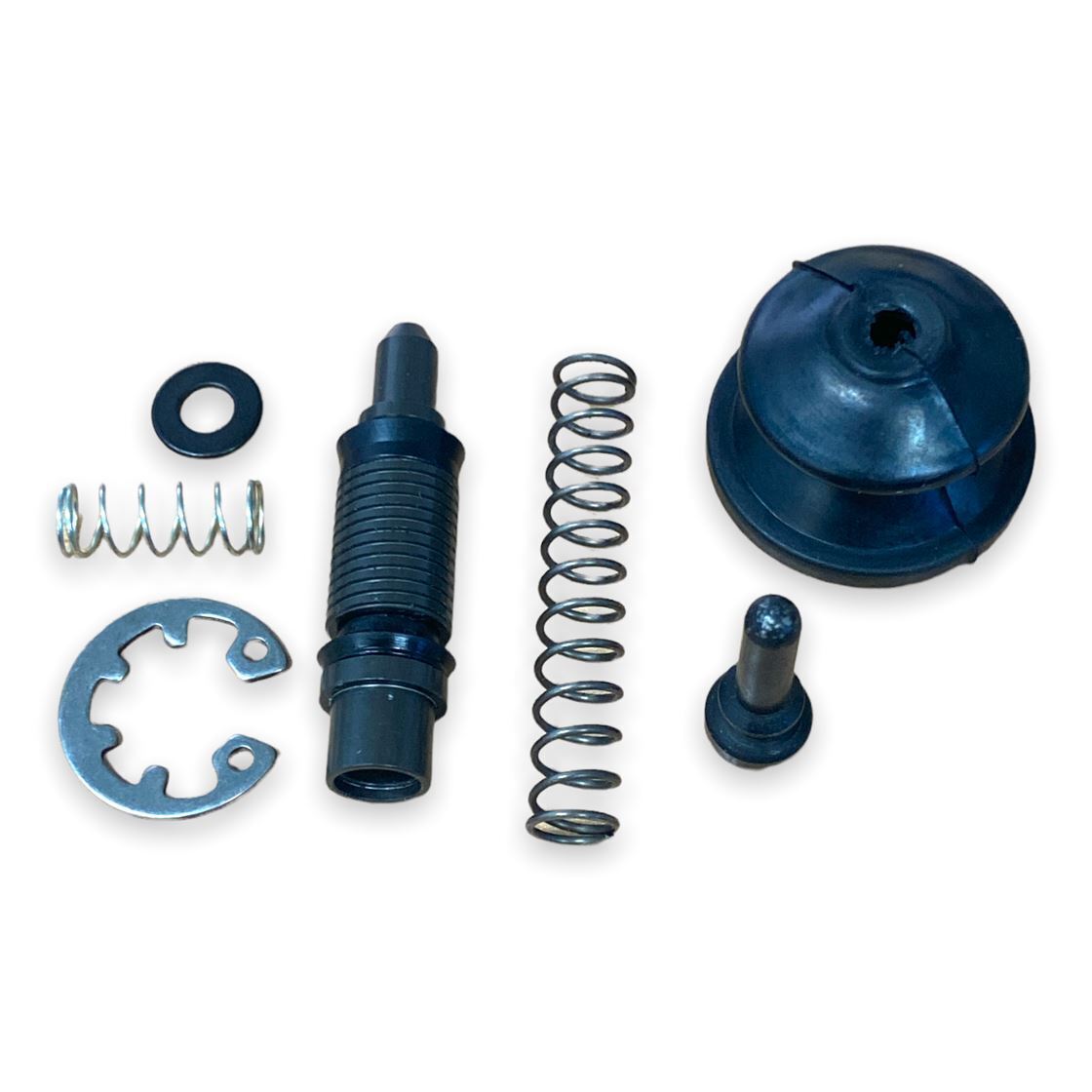

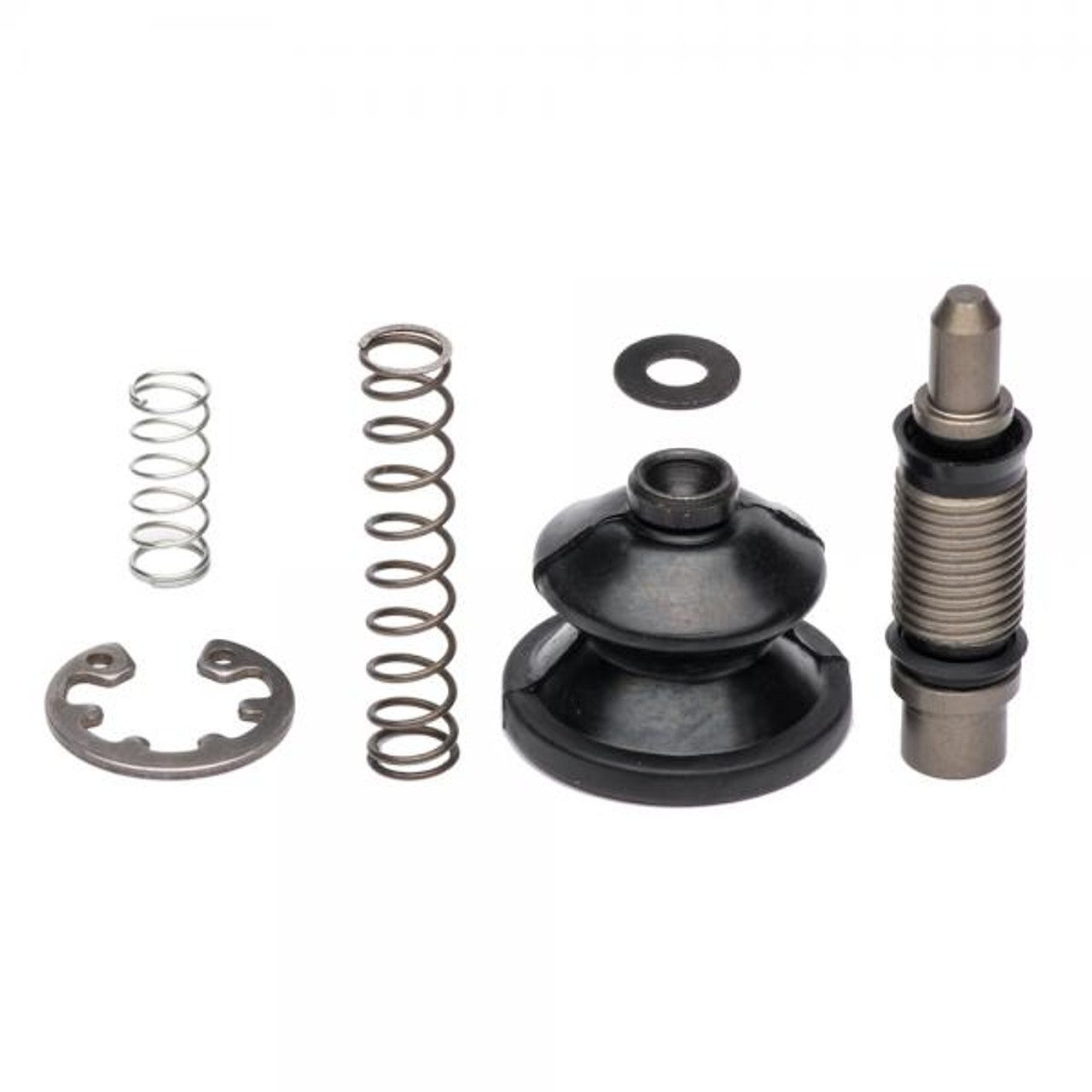

Includes: 9.5mm Piston with 2 seals, Spring, Circlip, Plunger, Rubber Boot and Spring. DOT4 Brake Fluid seals.
Braktec part number: 150.00.195C
Gas Gas Part number: R340004
Scorpa Part number: 3023
Beta Techno 1994, 1995, 1996, 1997, 1998, 1999
Montesa Cota 315R 1997, 1998, 1999, 2000
Outer Diameter 9.5mm
Overall length 38mm
Critical length 20mm
