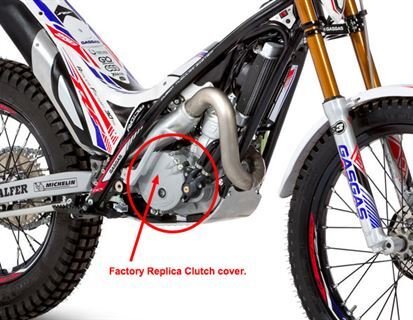

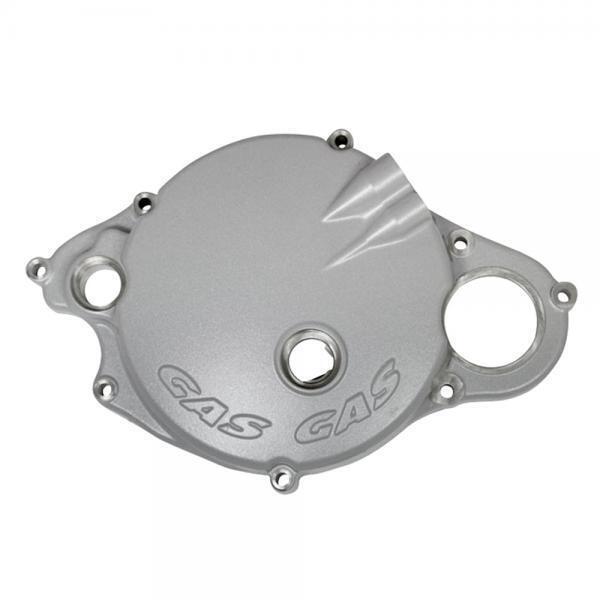

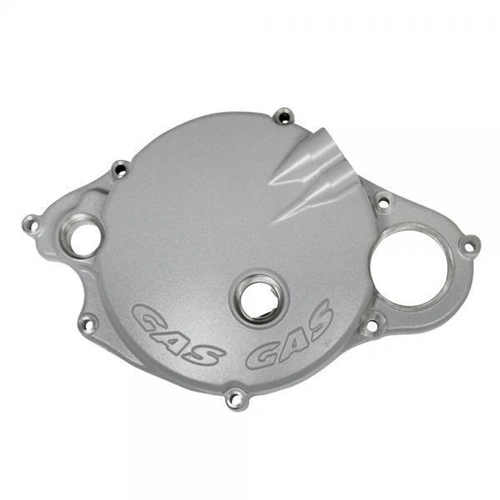

CLUTCH COVER originally fitted to Gas Gas Replica Factory 2014 model.

Grey in colour, but will fit all TXT models up to, and including 2018.

This will fit all TXT Pro, Racing, Raga Replica, Factory and GP models from 2003 to 2018.

Also sometimes listed as part #: MT65000GG-CBN-1

This comes as a bare side cover. it does not contain sight glass, Kick start seal, clutch slave seals etc.

---------------------------------------------------------------------------------------------------------------------------------------

Just a note if you are replacing this side case because the previous one cracked around the Kickstart Shaft area.

That damage is caused by a worn support bearing MT280226067, that is on the inner crankcase supporting the inside end of the kick start shaft.

When this is worn it allows the kickstart movement to move the shaft up and down when kicking, and hence unduly loading the clutch side case.

If you don’t replace this bearing IT WILL happen again.

It is an easy replacement as it is a bucket bearing and can be removed without splitting cases, taking engine out, or anything difficult.

It can be drifted out from the back of the bearing, near the carburettor. (You can see it if you look from the left side of the bike towards the back of the kickstarter area of the case.

There is HOW TO stuff on our website under the TECH SUPPORT area. We have one on reinstalling the Kick start shaft and how to pre-load the spring on install.

SKU MT65000CT-CBN-1
Brand GASGAS
Shipping Weight 0.4000kg
