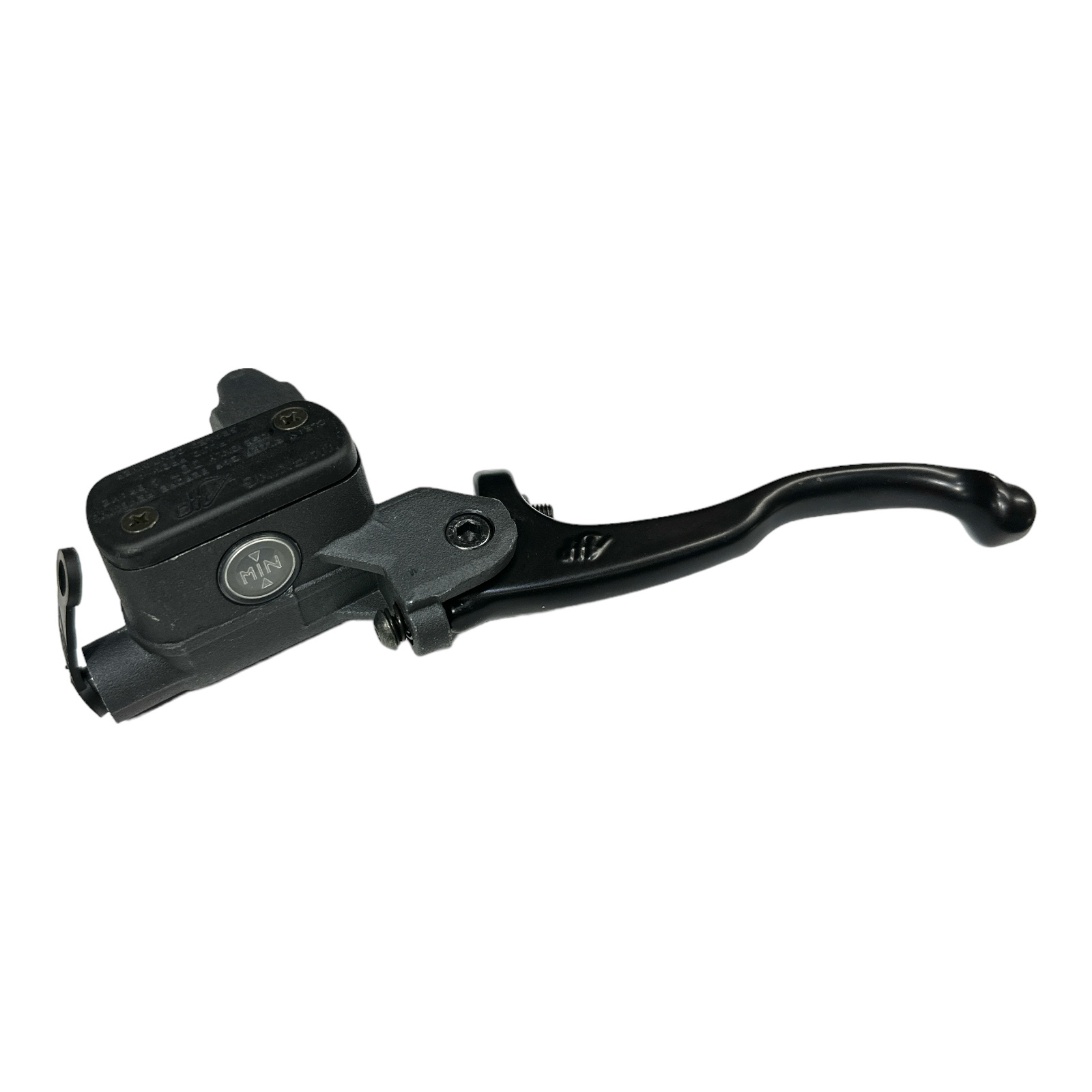

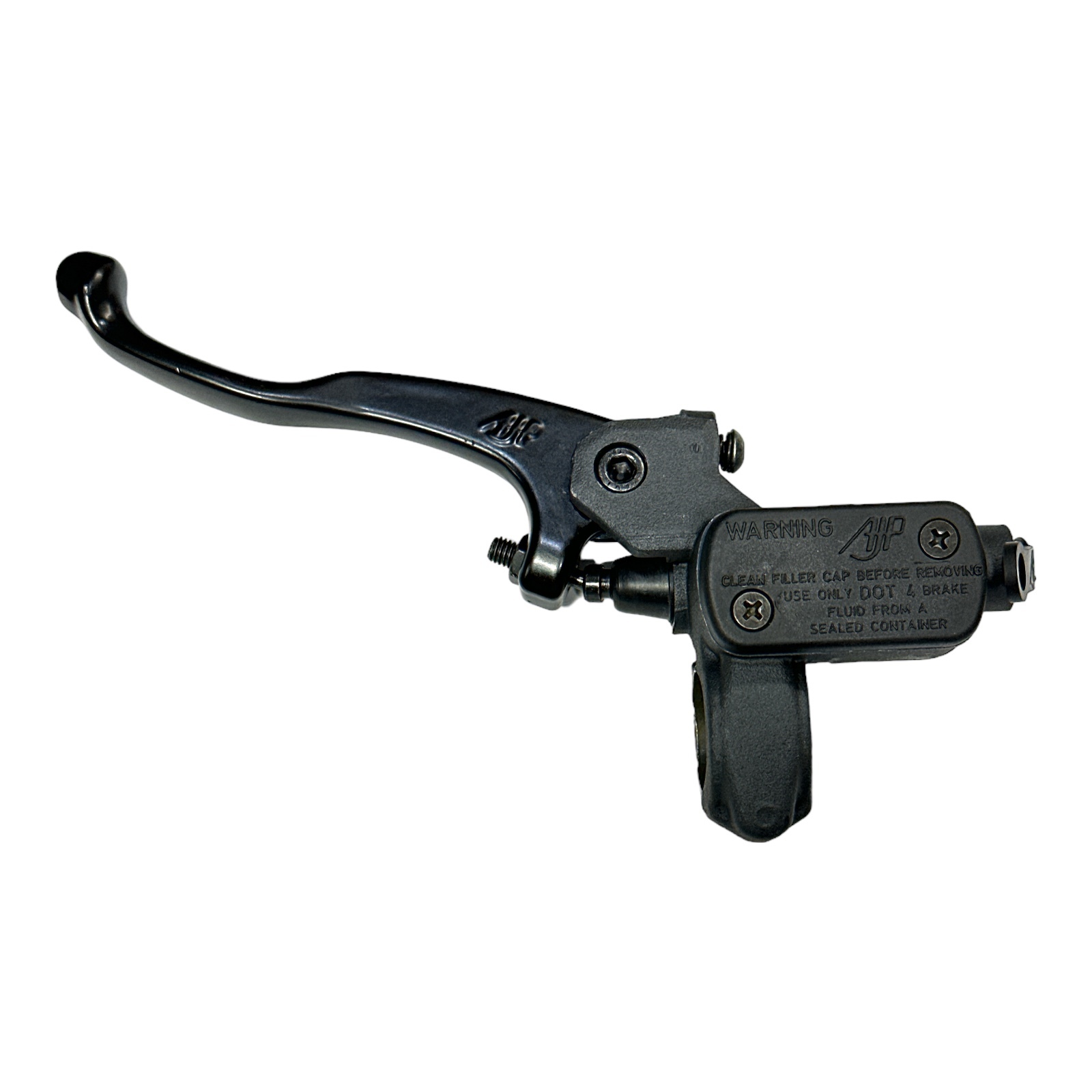

CLUTCH Master Cylinder:

AJP 12MM Piston Bore , DOT4

with 10mm side entry for hose (hose parrallel to handlebar )

Most Trials Master cylinders use a 10mm piston bore. These 12mm piston bore Master Cylinders were used on Kids bike so they could get the lever closer to the bars (for small hands) but the clutch come on with only a short distance travel so the lever didn't have to go all the way to the bars.

Changing your front master cylinder from a 10mm bore size up to a 12mm bore size will make your clutch lever firmer (harder) with shorter travel, but it will reduce line pressure for a given amount of hand or foot effort.

How the Clutch Feel Changes

  • Firmer / Harder Feel: A 12mm bore displaces more fluid per unit of stroke than a 10mm bore. Because less travel is required to push fluid out to the clutch, the lever will stop moving sooner and feel stiff or woody.
  • Shorter Travel: You will have much less free play and a shorter throw before the clutch engages.
  • Higher Effort Required (Lower Hydraulic Advantage): A smaller bore (10mm) acts as a stronger hydraulic multiplier, generating higher pressure at the slave with less physical force. Moving to a 12mm bore decreases that mechanical-to-hydraulic advantage, meaning you will have to squeeze or press harder at the lever to achieve the same force.
  • Risk of "Wooden" or Insensitive Feel: If your slave piston volume is not matched to a 12mm master cylinder, the ratio can become too low (similar to dropping below optimal leverage ratios), resulting in a dead, wooden feel where it is hard to modulate smoothly.
SKU BIT50022009
Brand GASGAS
Shipping Weight 0.2000kg
