• Rear Damper Springs TTX22M/TTX22m.2 series 18075-xx up to 57mm stroke

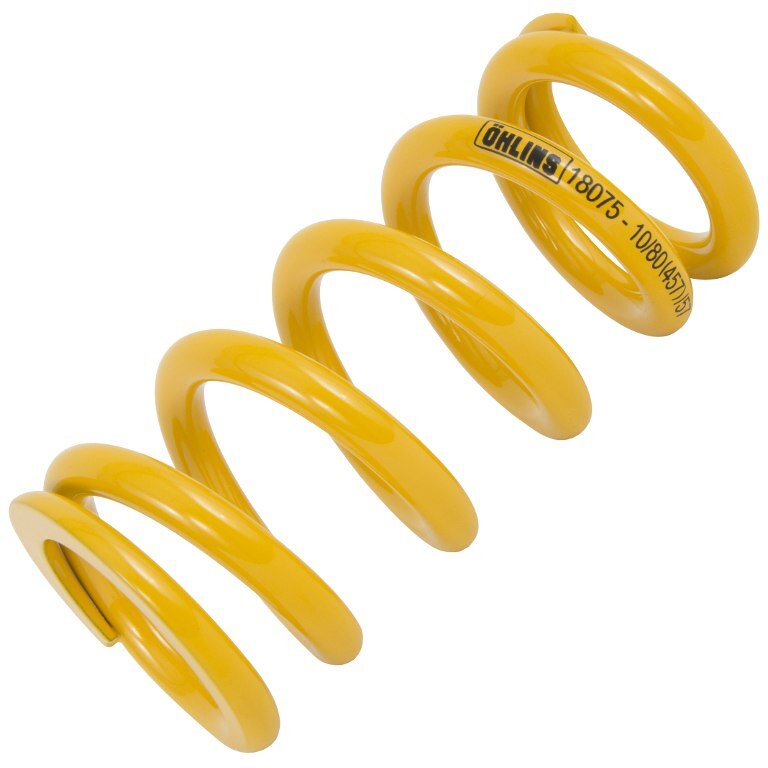

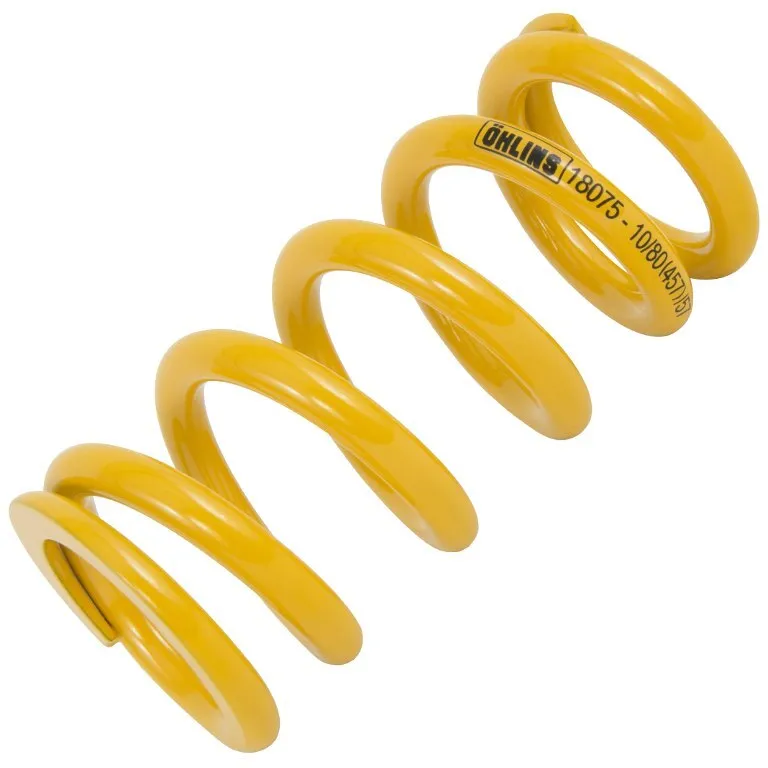

Coil springs for Öhlins Mecatecno DragonFly shock absorbers TTX22M are race ready weight with big mountain strength. Careful material selection and advanced production technology featuring a multi-step surface treatment process as well as cutting edge heat treatments and wire materials allows us to stress the wire harder without causing damage to the spring and therefore design lighter springs. Öhlins  coil springs are available in steps of 4 N/mm (23 lbs/in) and have a maximum tolerance of 1,5%.



Technical Specifications:

  • Weight: 650 - 850 g
  • Diameter: 36 mm (1,42 in)
  • Stroke: 57 mm (2,25 in)
  • Material: steel, powder coated
  • Colour: yellow

Fits the following vehicles

  • Mecatecno DragonFly Electric Trials

  • SPRING RATES:
  • 18075-06 (64 N/mm 365 lb/in)
  • 18075-07 (68 N/mm 388 lb/in)
  • 18075-08 (72 N/mm 411 lb/in)
  • 18075-09 (76 N/mm 434 lb/in)
  • 18075-10 (80 N/mm 457 lb/in)
  • 18075-11 (84 N/mm 480 lb/in)
  • 18075-12 (88 N/mm 502 lb/in)
  • 18075-13 (92 N/mm 525 lb/in)
  • 18075-14 (96 N/mm 548 lb/in)
  • 18075-15 (100 N/mm 571 lb/in)
  • 18075-16 (106 N/mm 605 lb/in) STANDARD FITMENT ON DF
  • 18075-17 (112 N/mm 640 lb/in)
  • 18075-18 (118 N/mm 674 lb/in)
  • 18075-19 (124 N/mm 708 lb/in)
  • 18075-20 (130 N/mm 741 lb/in)
  • 18075-21 (136 N/mm 776 lb/in)
SKU 18075
Brand Ohlins
Shipping Weight 1.0000kg
