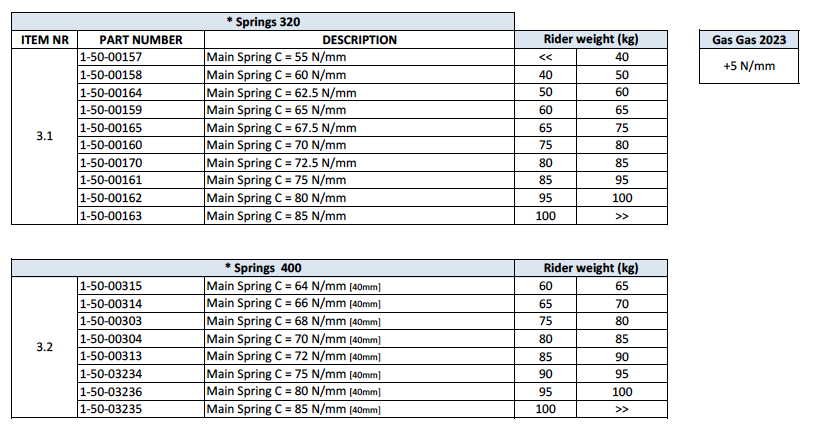

Rider weight range, and suggested spring rates.

The below spring rates are based on the current Gas Gas, with medium, or competent level riders. We advise more technical riders

to use one step softer spring and less technical riders to use one step harder spring than quoted in the list as a rule of thumb.


Some variation will occur depending on the bikes linkage system.

For example, Because the 2010 and 2011 Gas Gas Raga Replica bikes have a different link systems, we advise to use a 5 N/mm stiffer spring


All Reiger springs have the spring rate (in Newton Metres) printed on the spring coil.

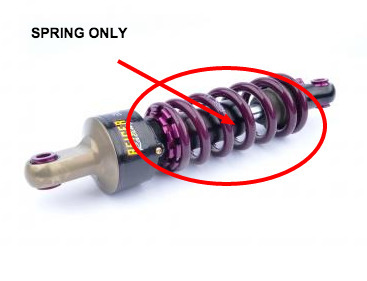

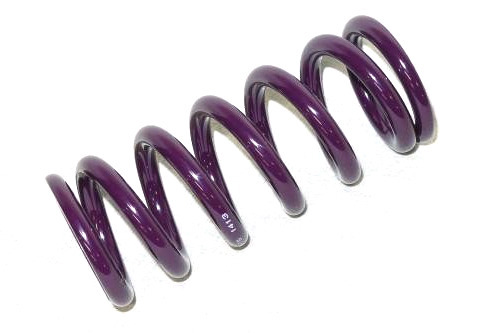

These springs are the stock 41.5mm Diameter for the 32mm size piston body.

Fits all GasGas Reiger shocks from 2011+

Fits TRS ONE R, and ONE RR (does not fit TRS GOLD Reiger's which have larger diameter 47..5mm coil)

Fits Scorpa # 6429 and 7183

Fits Sherco # 6429 and 7183

Fits all Vertigo Reiger shocks

Brand Reiger
Shipping Weight 0.4000kg
Shipping Width 0.070m
Shipping Height 0.070m
Shipping Length 0.140m
Shipping Cubic 0.000686000m3
