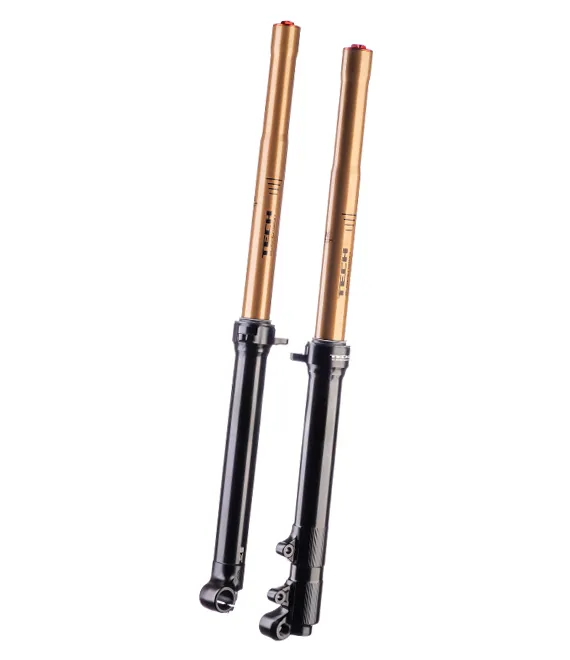

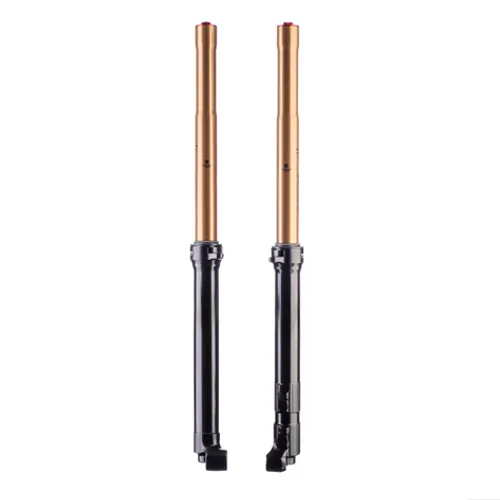

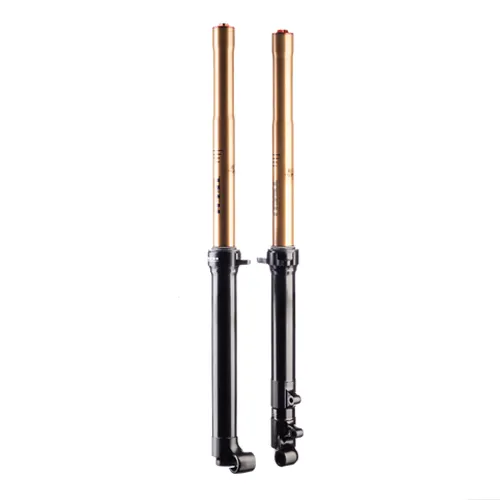

Super Lightweight Trials Fork

The Kashima Pro SL sets a new standard in trials suspension, weighing just 3.95kg and providing elite performance.

LIGHTWEIGHT DESIGN

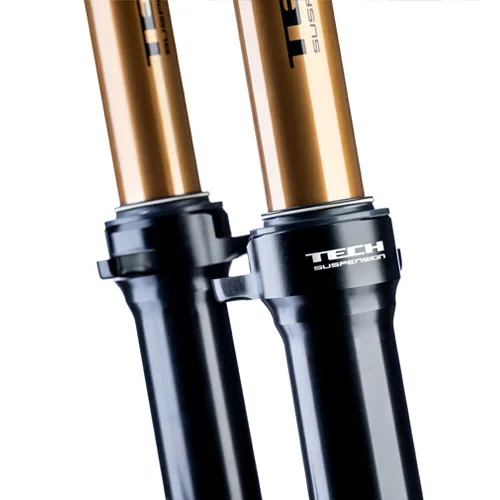

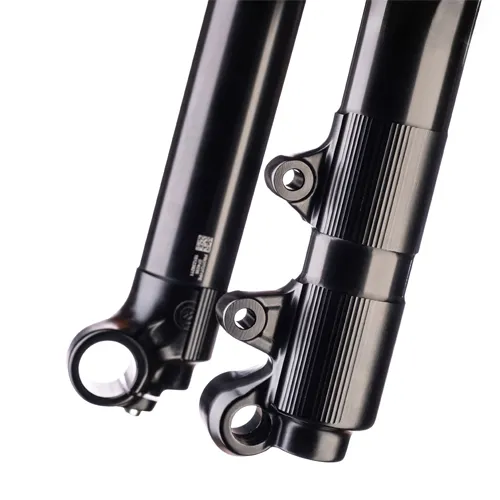

  • Forged and CNC-machined aluminum outer tubes: redesigned for minimal weight and maximum strength.

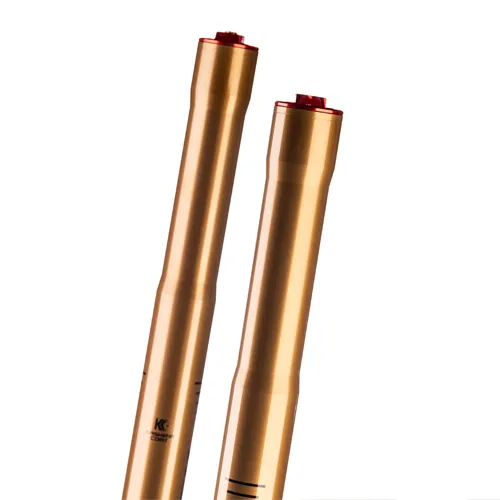

  • Refined 39mm stanchions: engineered for optimal performance while shaving off extra grams.
  • New lightweight springs made from high-tensile steel: requires less material, reducing weight without sacrificing performance.

PERFORMANCE & ADJUSTABILITY

  • Lighter front end for enhanced control of the motorcycle.
  • Low-friction Kashima® coating for smooth and consistent performance throughout the stroke.

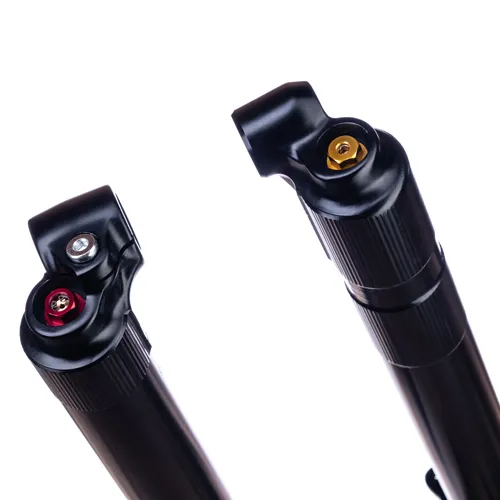

  • 165mm of fully-adjustable travel via a wide range of compression, rebound and pre-load adjustment (with shorter option also available).
  • End-of-travel hydraulic bumper.

DURABILITY

  • Kashima® coating increases stanchion durability and reduces wear on seals and bushings, increasing service intervals.
  • Heady duty seals designed for use in extreme conditions.



Technical specifications

GEOMETRY   STANCHIONS
Length 747mm (short option 740mm) Diameter (Ø) 39mm
Travel 165mm (short option 158mm) Material Aluminium alloy
SUSPENSION SYSTEM   Treatment Kashima coating
Damping Hydraulic cartridge OUTER TUBES
Spring Progressive spring Material Lightweight forged and CNC'd aluminium
ADJUSTMENTS   Colour Black
Rebound 32 clicks PRODUCT WEIGHT 3.95kgs
Compression 5 turns
Preload 1 to 10mm
Bottom out 6 turns



check out the video, under the video tab for more information.

SKU 151239214
Brand TECH
Shipping Weight 4.0000kg
