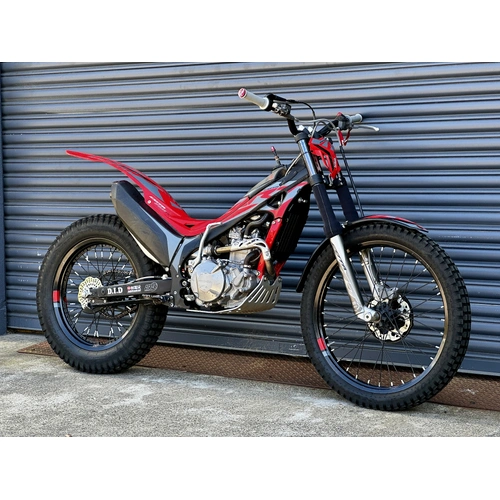

Engine Type:   259cc liquid-cooled single-cylinder four-stroke

Transmission:   Close-ratio five-speed

Front Suspension:   39.0mm telescopic Showa® fork; 6.2-inch travel

Rear Suspension:   Pro-Link® Showa® single shock; 6.9-inch travel

Seat Height:   26.8 inches

Curb Weight:   172 pounds (w/all fluids and fuel)



Engine

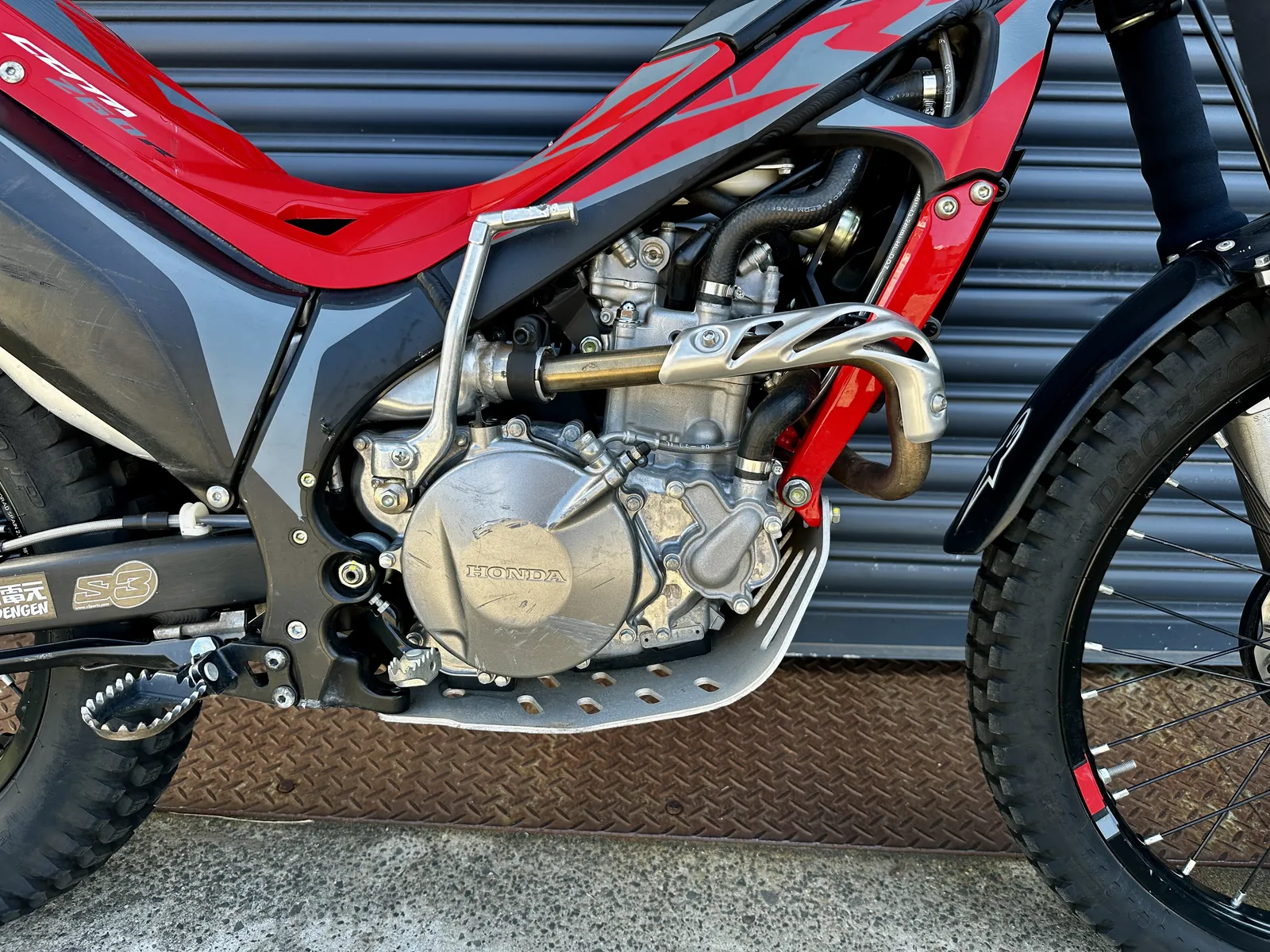

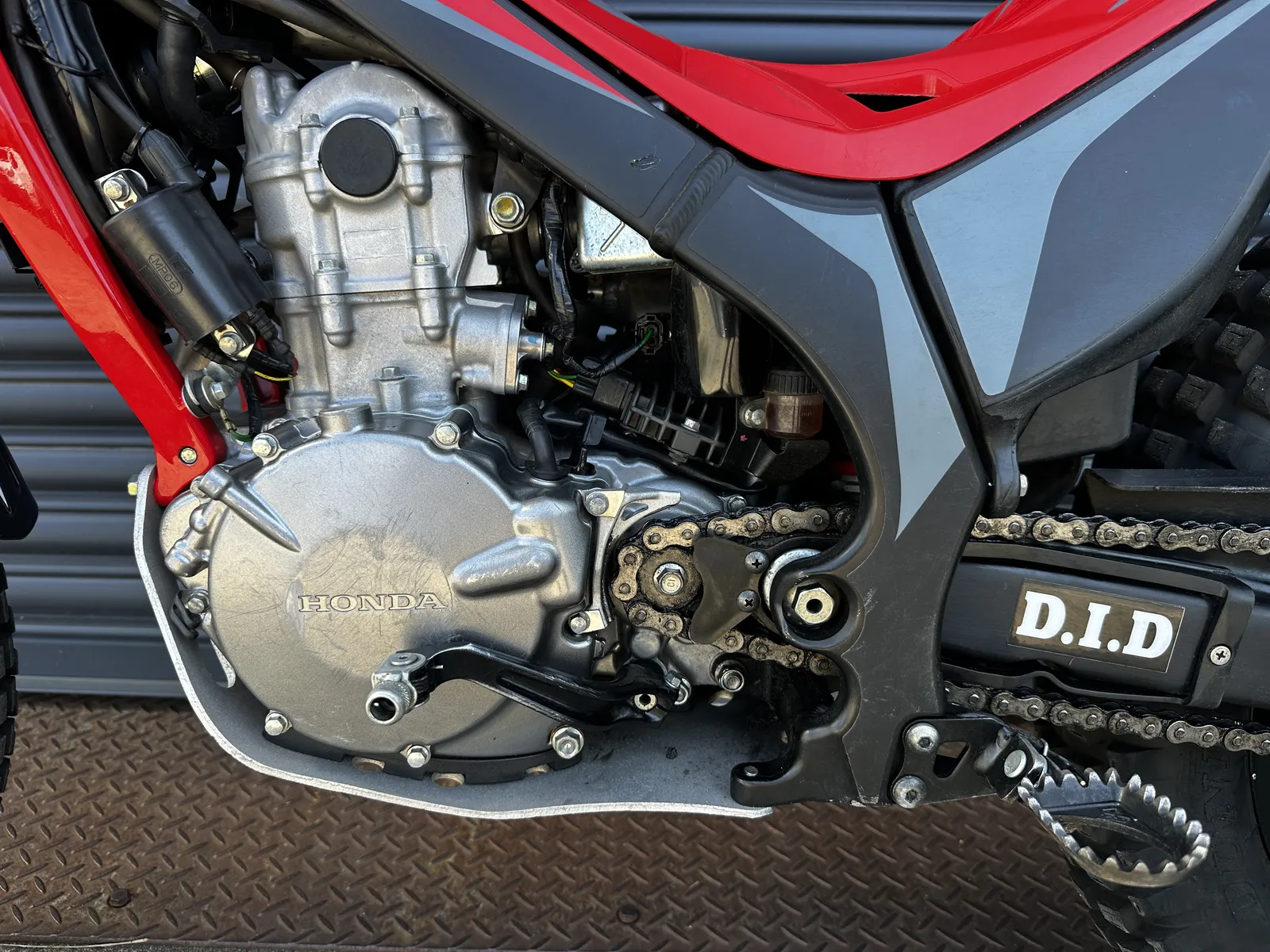

Engine Type 259cc liquid-cooled single-cylinder four-stroke
Bore And Stroke 78.0mm x 54.2mm
Compression Ratio 10.5:1
Valve Train SOHC, four valves per cylinder
Induction Programmed Fuel Injection system (PGM-FI)



Drivetrain

Transmission Close-ratio five-speed

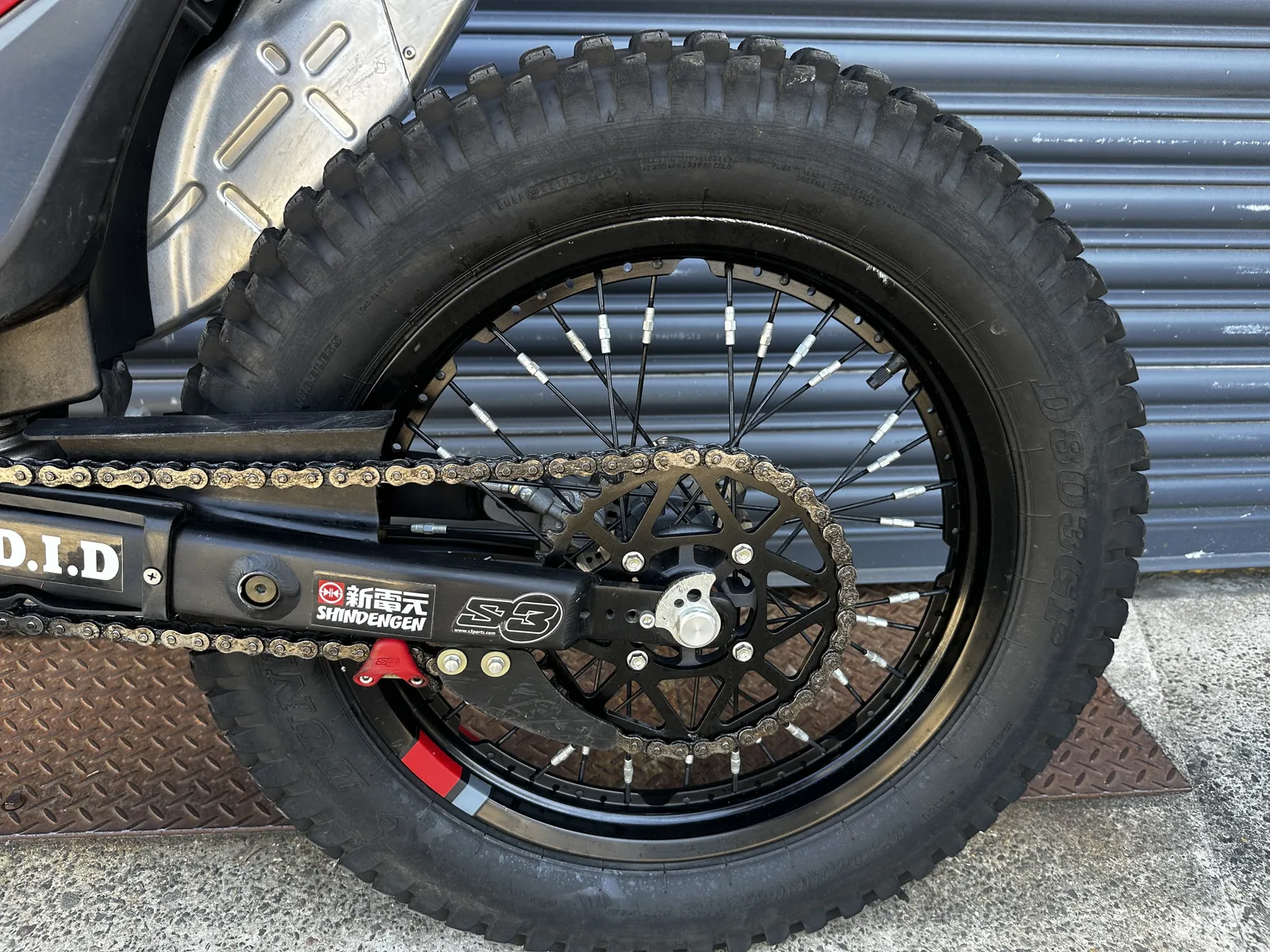

Final Drive #520 chain; 10T/41T



Chassis Suspension Brakes

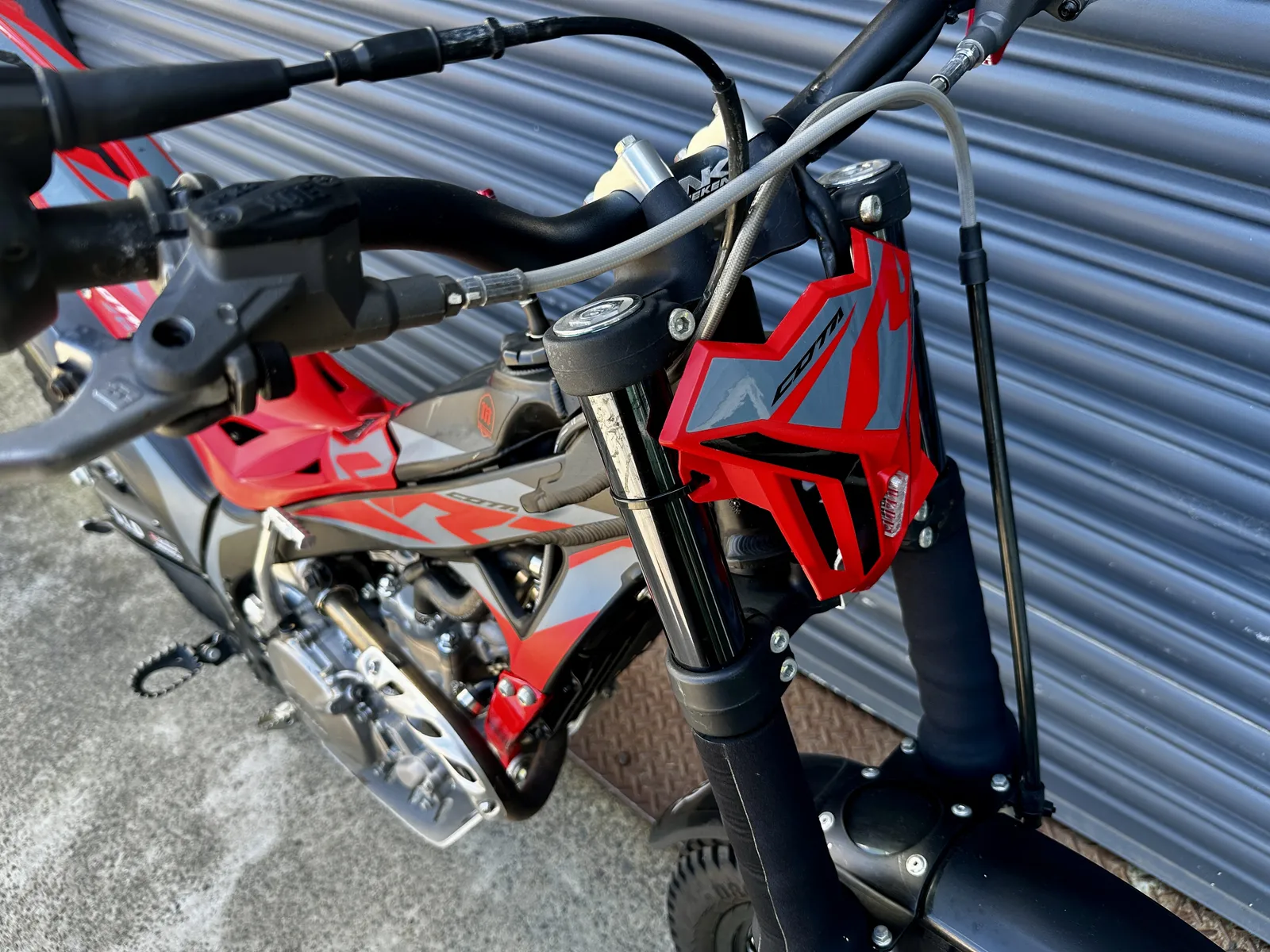

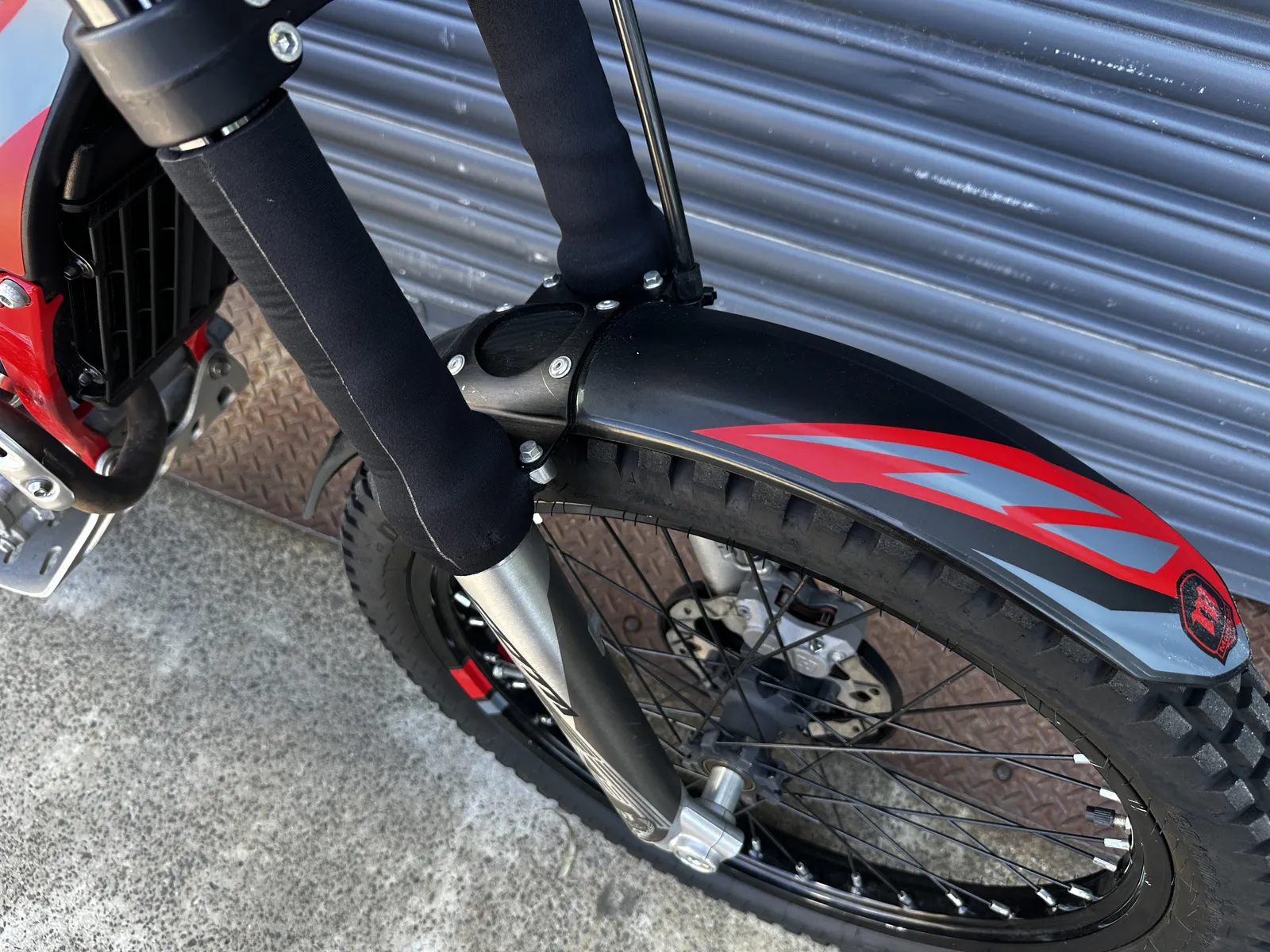

Front Suspension 39.0mm telescopic Showa® fork; 6.2-inch travel

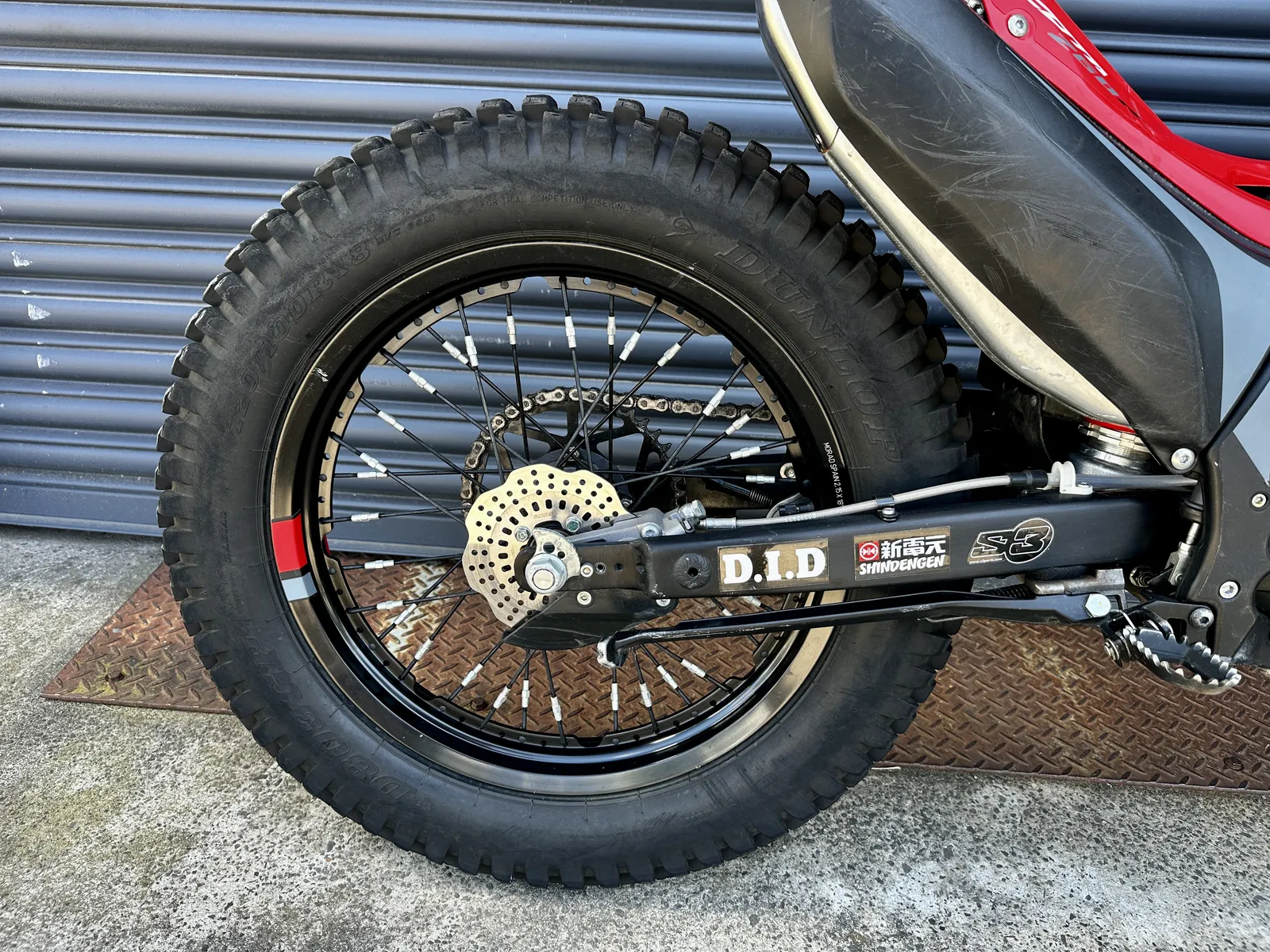

Rear Suspension Pro-Link® Showa® single shock; 6.9-inch travel

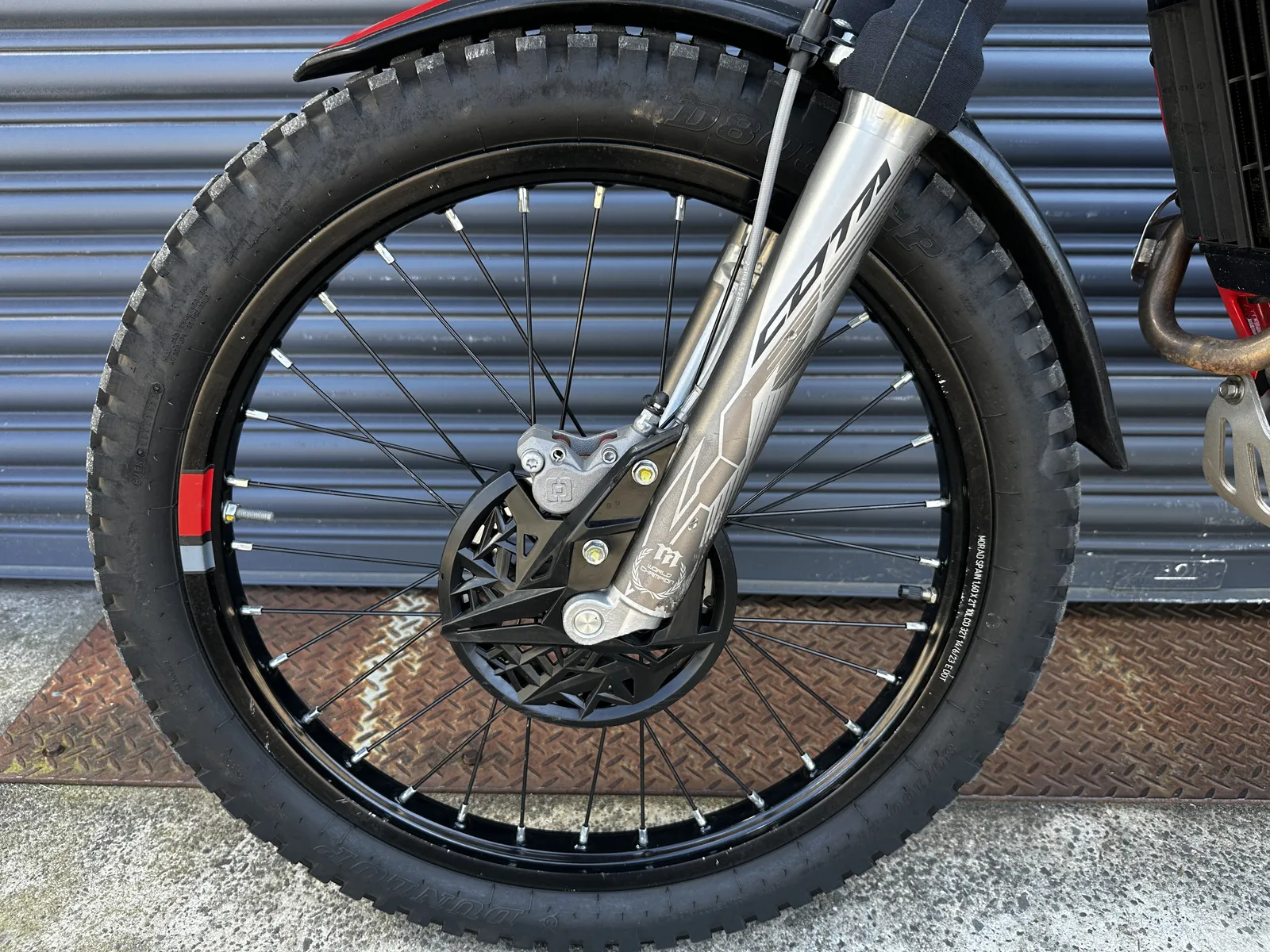

Front Brake Single 184.0mm hydraulic disc with 4-piston caliper and sintered metal pads
Rear Brake Single 150.0mm hydraulic disc with 2-piston caliper and sintered metal pads
Front Tire Dunlop 80/100-21
Rear Tire Dunlop 120/100-R18



Dimensions

Wheelbase 52.2 inches
Rake 23.2°
Trail 2.3 inches
Seat Height 26.8 inches
Ground Clearance 13.2 inches
Curb Weight 172 pounds (w/all fluids and fuel)
Fuel Capacity 1.9 gallon



SKU VTDNE04C6RE000036
Brand Montesa
Shipping Weight 90.0000kg
Shipping Width 0.420m
Shipping Height 1.170m
Shipping Length 2.000m
Shipping Cubic 0.982800000m3
