Reiger B40 Shock TRS GOLD - 5 Way

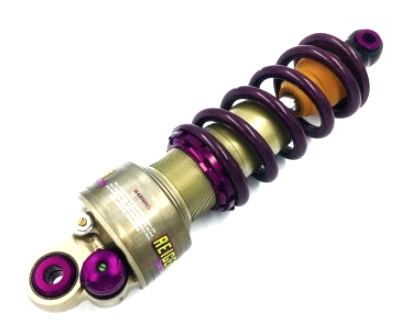

Reiger B40 Factory rear shock, as found on the TRS GOLD edition bikes.
Can be used on all TRS models but you also need to change the lower link to 05012TR100
and use 4 x 52502 Suspension needle bearings
and 4 x 54002 Suspension Seals
to replicate the GOLD suspension setup.
Secure Payment Methods
Reigers B40 Factory version of the trial dampers now come with a larger 40mm main piston diameter giving greater damping control and improved reliability. They still have the same 4 way adjustable damping control, and the spring pre-load adjustment.
The damper has an adjustable spring preload, a rebound adjustment to balance control and stability, high speed compression to control the large hits and low speed compression adjustments for the slower movements.
The B40 Factory version was developed together with Adam Raga, multiple world champion, in this partnership they developed the hydrostop feature.
The hydrostop makes the compression damping very progressive at the end of the damper travel, which prevents bottoming. This is also adjustable.
300mm overall length
270mm eye centre to eye centre.
M10 bolts through eyes top and bottom
Spring Outside diameter 70mm
Reservoir Outside diameter 70mm
